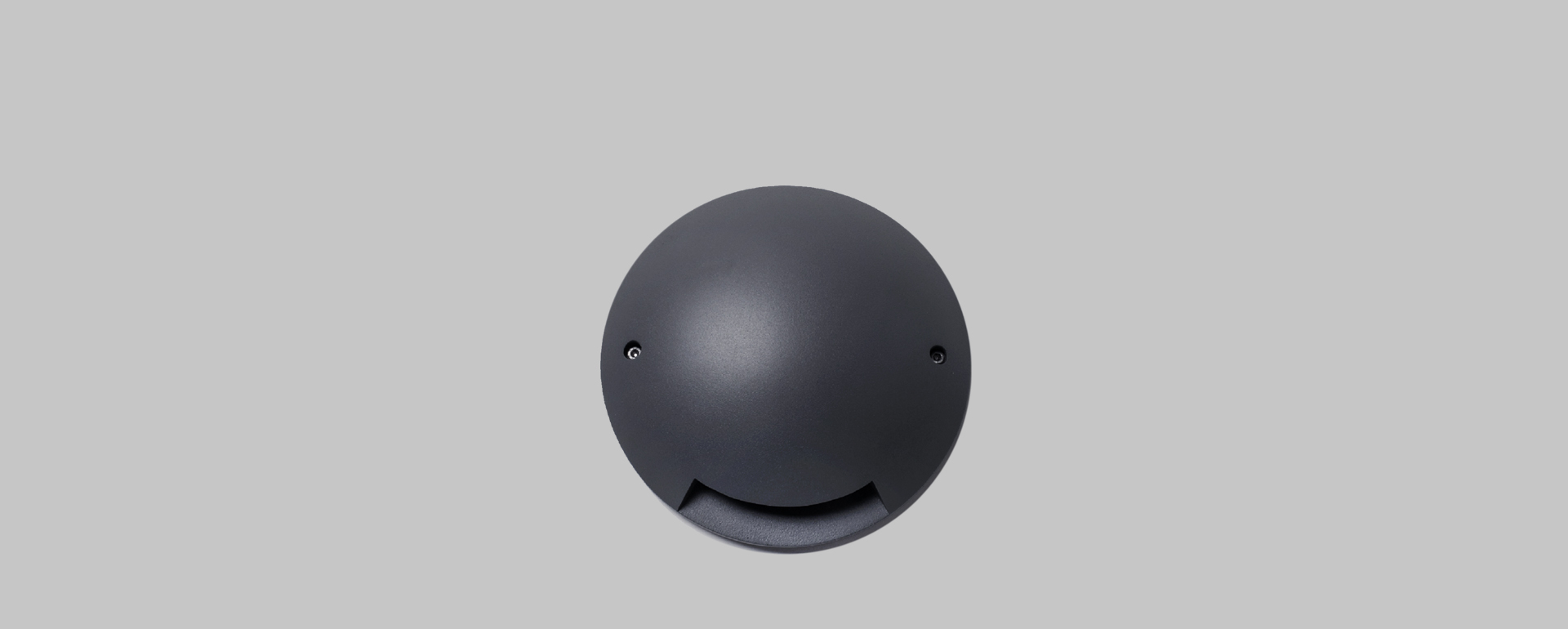

ONE STEP LARGE

POWERFUL STEP LIGHT FOR WHITE PCB TYPE



GENERAL
Pedestrians road
Powerful step light

LED
High power LED chip
3,000K – 6,500K
From 360lm to 420lm

PRODUCT EFFICACY
Up to 60lm/W (White)
Up to 30lm/W (Color)

PROTECTION CLASS
IP67

OTHER INFO
KS C 7713

MATERIAL
Body_ aluminum die-casting
Diffuser_ 3mm tempered glass
Base_ aluminum die-casting

Finished
Powder painted

POWER SUPPLY
Powersupply unite excluded
DC 24V

Powersupply unite included
AC 220V/60Hz

MATERIAL COLOR
Dark Gray
Brown
