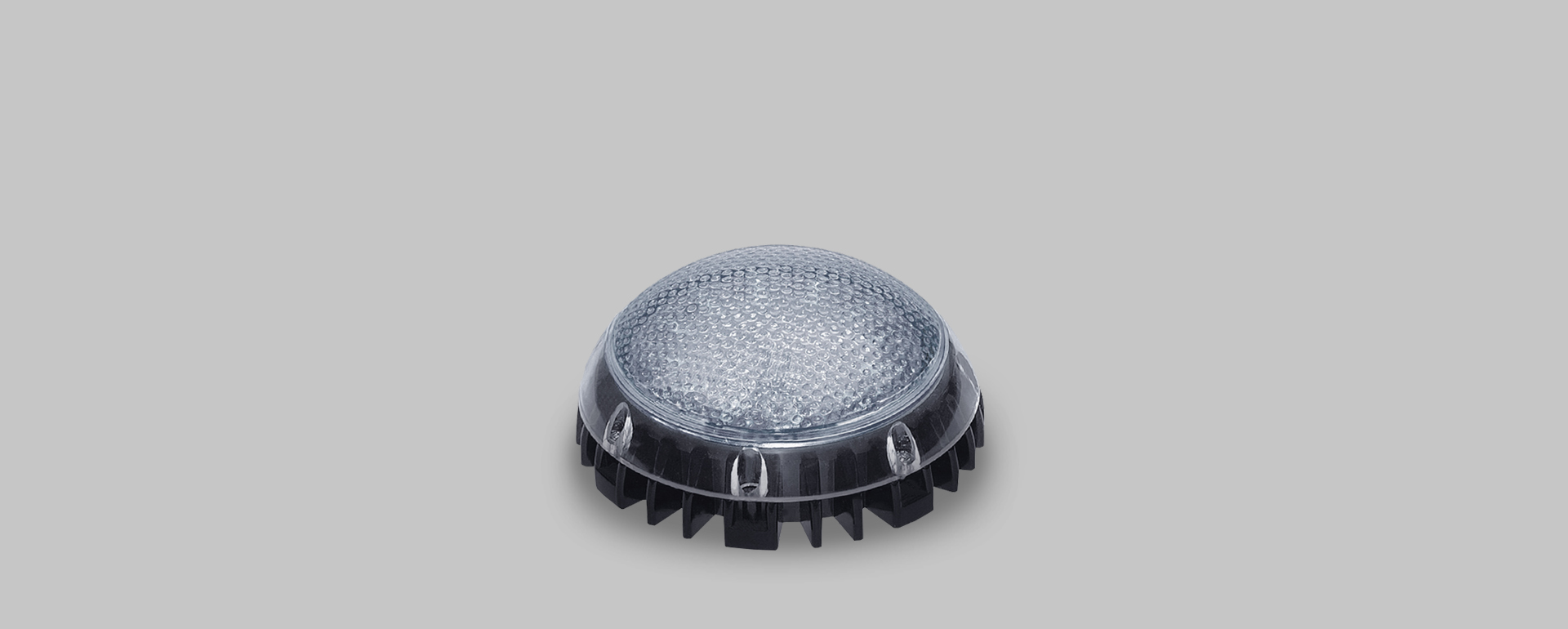

TWINKLE 6.0 /9.0

EFFECTIVE POINT LIGHT FOR MONO or COLOR MIXING PCB TYPE



GENERAL
Various capacity
effective point light

LED
High bright smd LED chip
3,000K – 6,500K
Color mixing (3CH, 4CH)
From 180lm to 360lm (6W)
From 270lm to 540lm (9W)

PRODUCT EFFICACY
Up to 60lm/W (White)
Up to 30lm/W (Color)

PROTECTION CLASS
IP65

OTHER INFO
KS C 7713

MATERIAL
Body_ aluminum die-casting
Diffuser_ anti-UV polycarbonate
Bracket_ custom made

Finished
Powder painted

POWER SUPPLY
Powersupply unite excluded
DC 24V

MATERIAL COLOR
Black
