GENERAL

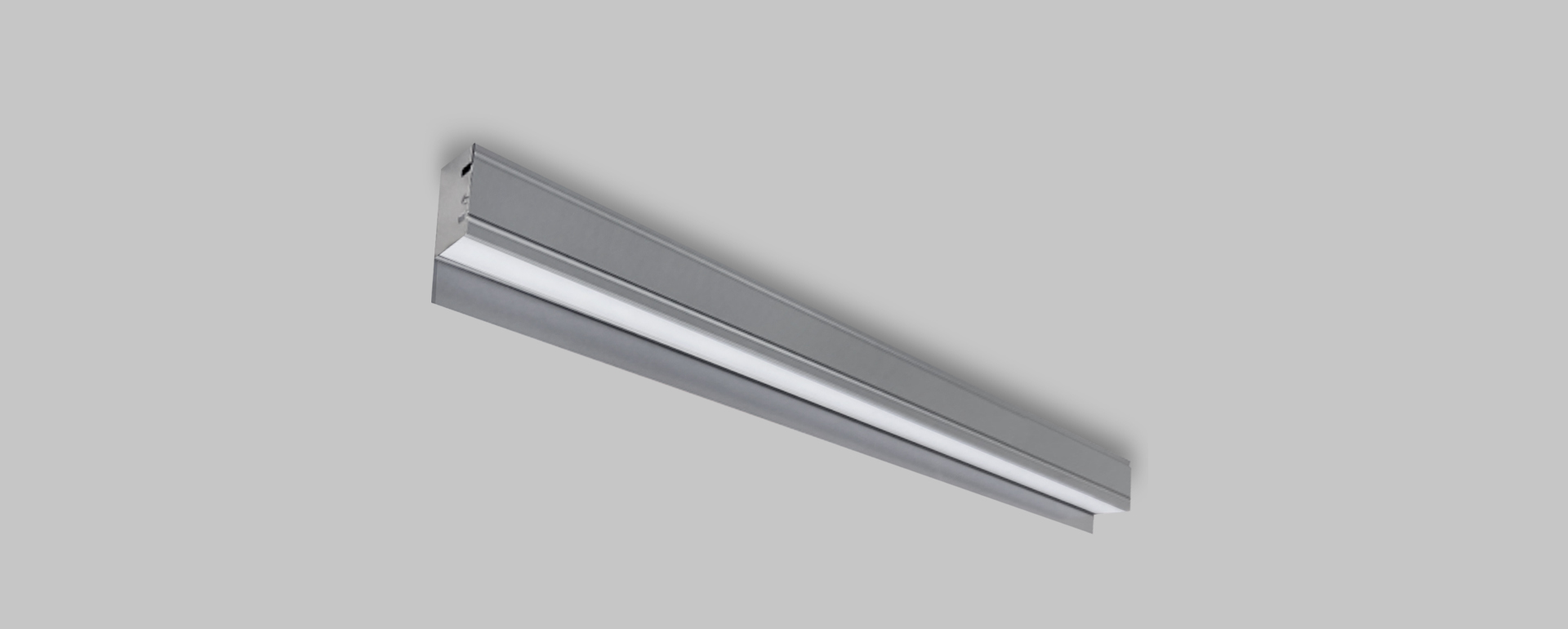

Electrical wiring duct
indirect line bar light
LED
High bright smd LED chip
3,000K – 6,500K
Color mixing (3CH, 4CH)
From 450lm to 900lm
PRODUCT EFFICACY
Up to 60lm/W (White)
Up to 30lm/W (Color)
PROTECTION CLASS
IP66 (Only ligiting fixture)
IP43 (Housing Duct)
OTHER INFO
KS C 7713
MATERIAL
Housing_ aluminum extruding
Shield_ aluminum extruding
Body_ aluminum extruding
Diffuser_ anti-UV polycarbonate
(clear or milky type)
Endcap_ aluminum
Finished
Aluminum anodized
Powder painted
POWER SUPPLY
Powersupply unite excluded
DC 24V
MATERIAL COLOR
Natural Aluminum
