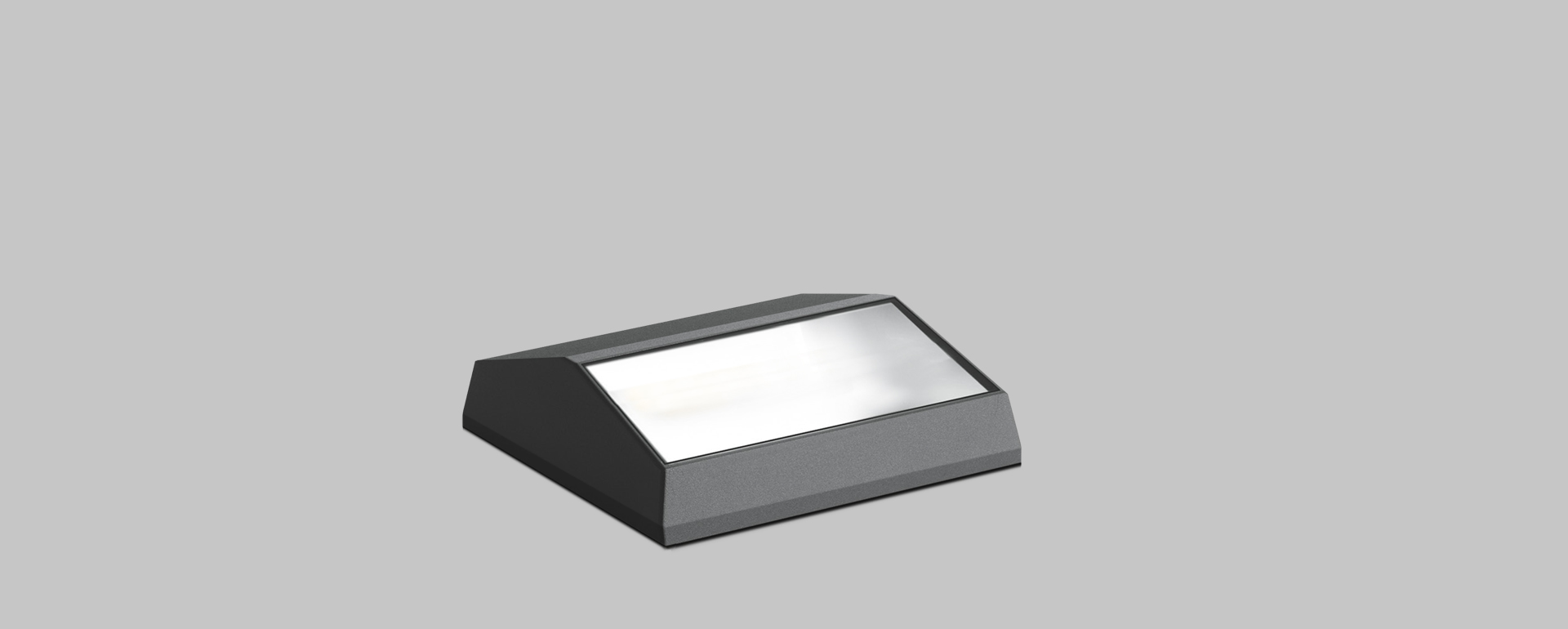

GROUND TILT

ULTRA SLIM ADJUSTABLE GROUND LIGHT FOR MONO or COLOR MIXING PCB TYPE



GENERAL
Ultra slim adjustable
Ground light

LED
High power LED chip
3,000K – 6,500K
Color mixing (3CH, 4CH)
From 700lm to 1,400lm (20W)
From 1,080lm to 2,520lm (36W)

PRODUCT EFFICACY
Up to 70lm/W (White)
Up to 30lm/W (Color)

PROTECTION CLASS
IP65

OTHER INFO
KS C 7713

MATERIAL
Body_ stainless steel 304
Diffuser_ anti-UV polycarbonate
Heatsink_ aluminum extruding
Base_ stainless steel 304

Finished
Powder painted

POWER SUPPLY
Powersupply unite excluded
DC 24V (Color mixing)

Powersupply unite included
AC 220V/60Hz (on request)

MATERIAL COLOR
Dark Gray
Sliver
