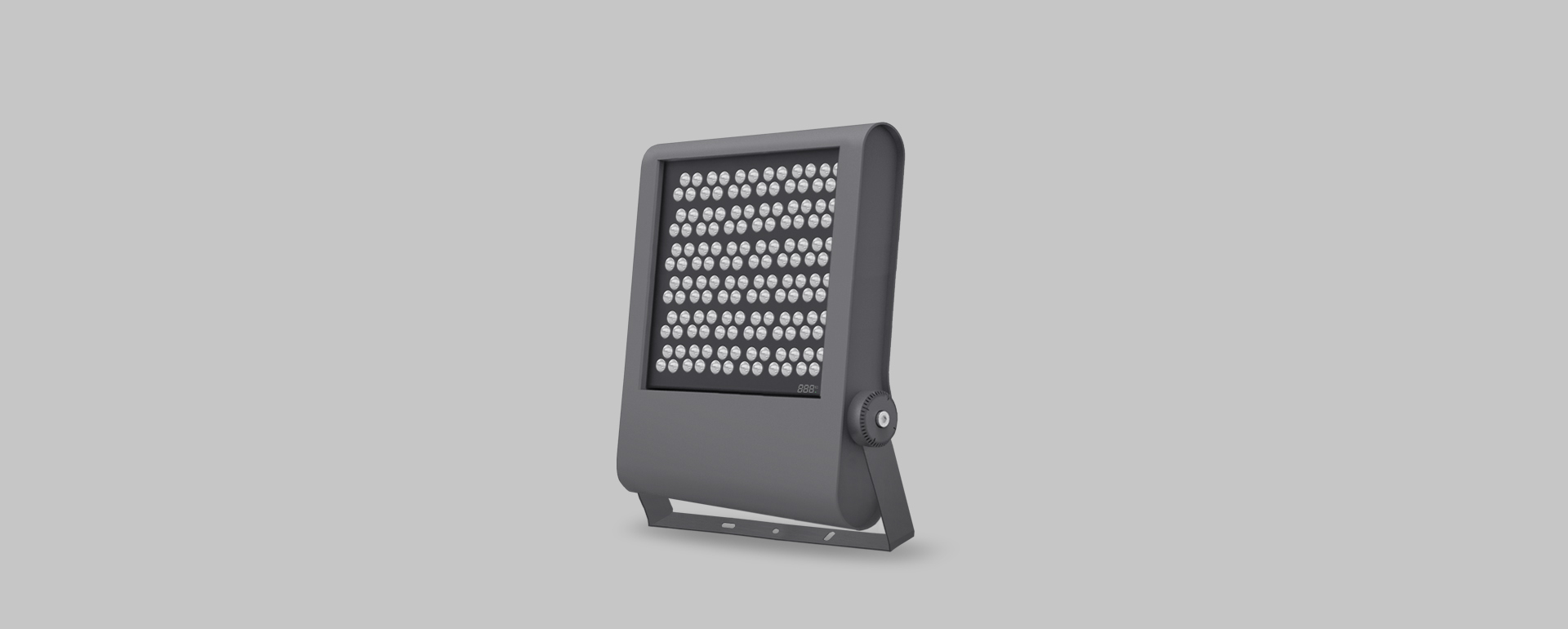

RAY5

VARIOUS CAPACITY FLOOD LIGHT FOR MONO or COLOR MIXING PCB TYPE



GENERAL
Various capacity light
High power flood light

LED
High power LED chip
3,000K – 6,500K
Color mixing (3CH, 4CH)
From 6,000lm to 14,000lm

PRODUCT EFFICACY
Up to 70lm/W (White)
Up to 30lm/W (Color)

PROTECTION CLASS
IP65

OTHER INFO
KS C 7713

MATERIAL
Body_ aluminum die-casting
Diffuser_ 4mm tempered glass
Lens cover_ Plastic
Mount bracket_ aluminum

Finished
Powder painted

POWER SUPPLY
Powersupply unite excluded
DC 24V

Powersupply unite included
AC 220V/60Hz (on request)

MATERIAL COLOR
Sliver
