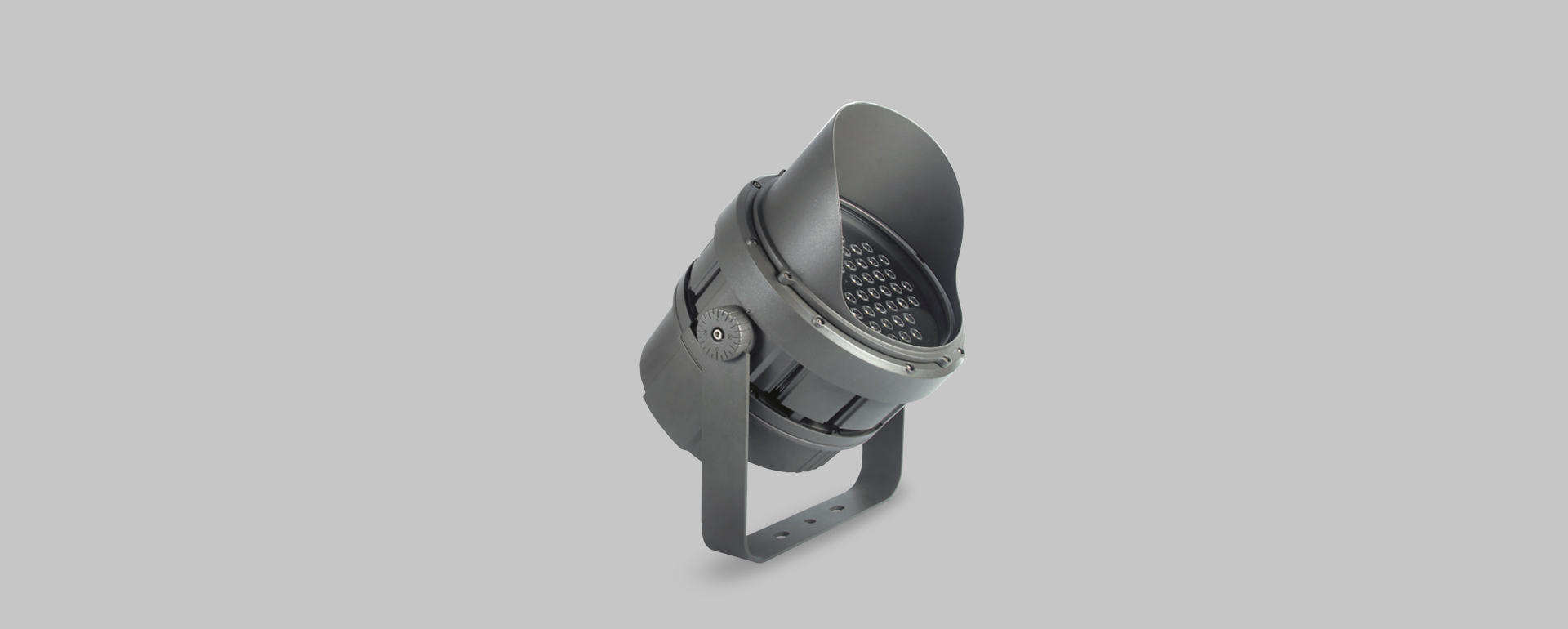

RUGBY4

COMPACT CITRCLE FLOOD LIGHT FOR MONO or COLOR MIXING PCB TYPE



GENERAL
Strong adjustable
High power flood light

LED
High power LED chip
3,000K – 6,500K
Color mixing (3CH, 4CH)
From 4,500lm to 10,500lm (150W)
From 6,000lm to 14,000lm (200W)

PRODUCT EFFICACY
Up to 70lm/W (White)
Up to 30lm/W (Color)

PROTECTION CLASS
IP65

OTHER INFO
KS C 7713

MATERIAL
Body_ aluminum die-casting
Diffuser_ 5mm tempered glass
Heatsink_ aluminum extruding
Lens cover_ Plastic
Hood_ aluminum die-casting
Mount Bracket_ aluminum

Finished
Powder painted

POWER SUPPLY
Powersupply unite excluded
DC 24V

Powersupply unite included
AC 220V/60Hz (on request)

MATERIAL COLOR
Sliver
