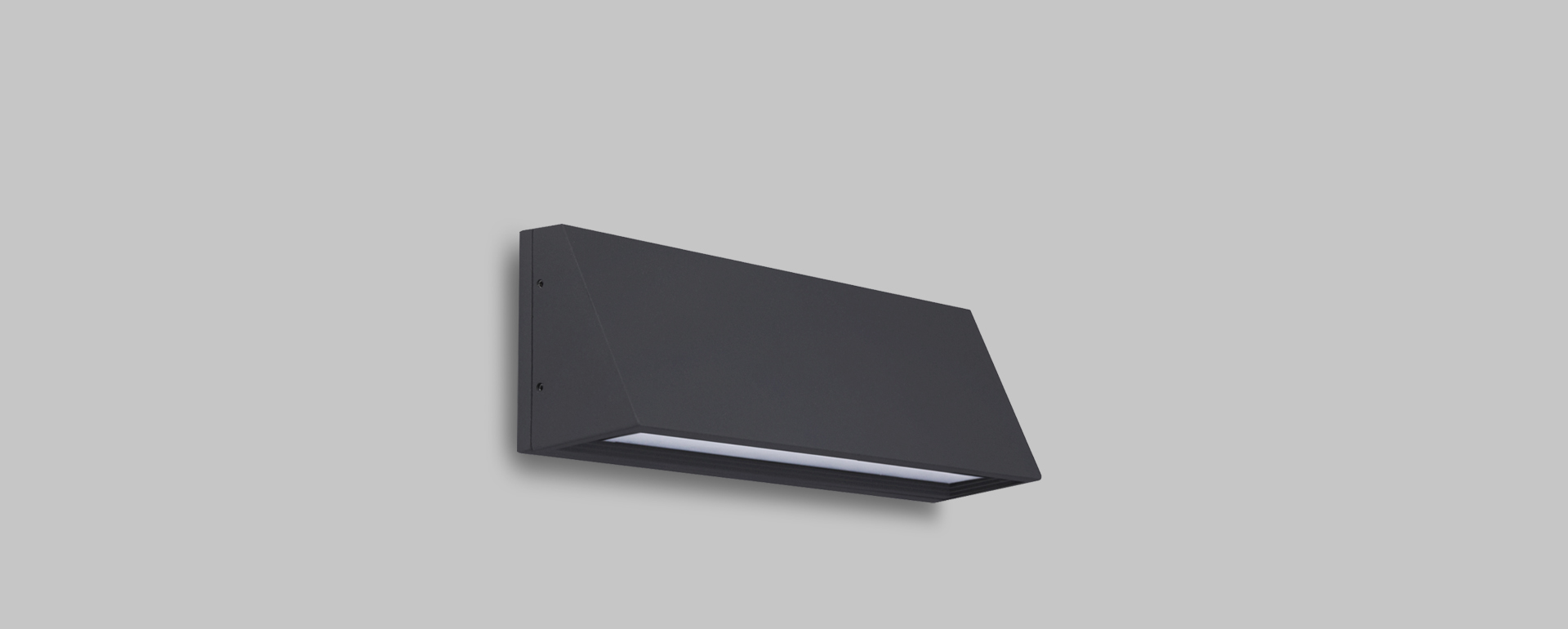

TRIGON

SIMPLE BRAKCET LIGHT FOR MONO or COLOR MIXING PCB TYPE



GENERAL
Widely used
simple bracket light

LED
High bright smd LED chip
3,000K – 6,500K
Color mixing (3CH, 4CH)
From 210lm to 420lm

PRODUCT EFFICACY
Up to 60lm/W (White)
Up to 30lm/W (Color)

PROTECTION CLASS
IP65

OTHER INFO
KS C 7713

MATERIAL
Body_ aluminum die-casting
Diffuser_ 4mm tempered glass
Heatsink_ steel plate
Attach plate_ aluminum

Finished
Powder painted

POWER SUPPLY
Powersupply unite excluded
DC 36V

Powersupply unite included
AC 220V/60Hz

MATERIAL COLOR
Dark Gray
Sliver

Downloads

PDF Back page
